XJK series spiral bevel gear reducer
Product features
(1)XJK series spiral bevel gear reducers are manufactured in combination with international technical requirements, and have high scientific and technological content.
(2) It is space-saving, reliable and durable, with high overload tolerance, and the power can reach more than 200KW.
(3) Low energy consumption, superior performance, and the efficiency of the reducer is over 95%.
(4)XJK spiral bevel gear reducer has small vibration, low noise and high energy saving.
Specification parameters
Installation type: base type, flange type, small flange type and torsion arm type installation.
Output mode: solid shaft, hollow shaft, expansion disc hollow shaft and involute spline hollow shaft output.
Input methods: direct motor, shaft input and connecting flange input.
Working principle
Parallel axis bevel gear reducer is mainly composed of driving shaft, driven shaft, bevel gear and box. When the driving shaft rotates, the driven shaft rotates through the gear to achieve the deceleration effect. The specific working principle is as follows: transmission shaft transmission: the transmission shaft is equipped with a transmission gear. When the transmission shaft rotates, the driving gear drives the helical gear to rotate. Driven shaft transmission: the driven shaft is equipped with a driven gear, and the helical gear drives the driven gear to rotate, thus realizing the rotation of the driven shaft. Deceleration: Because the gear on the driving shaft is larger than the gear on the driven shaft, the deceleration effect can be achieved through gear transmission, thus transforming the high-speed rotation of the driving shaft into low-speed rotation. Driven shaft. Through this working principle, the parallel-axis helical gear reducer realizes the transmission from the high-speed rotation of the driving shaft to the low-speed rotation of the driven shaft, making it suitable for occasions where deceleration is needed.

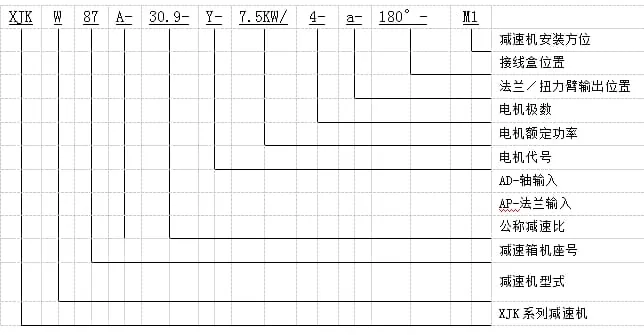

Representation method
