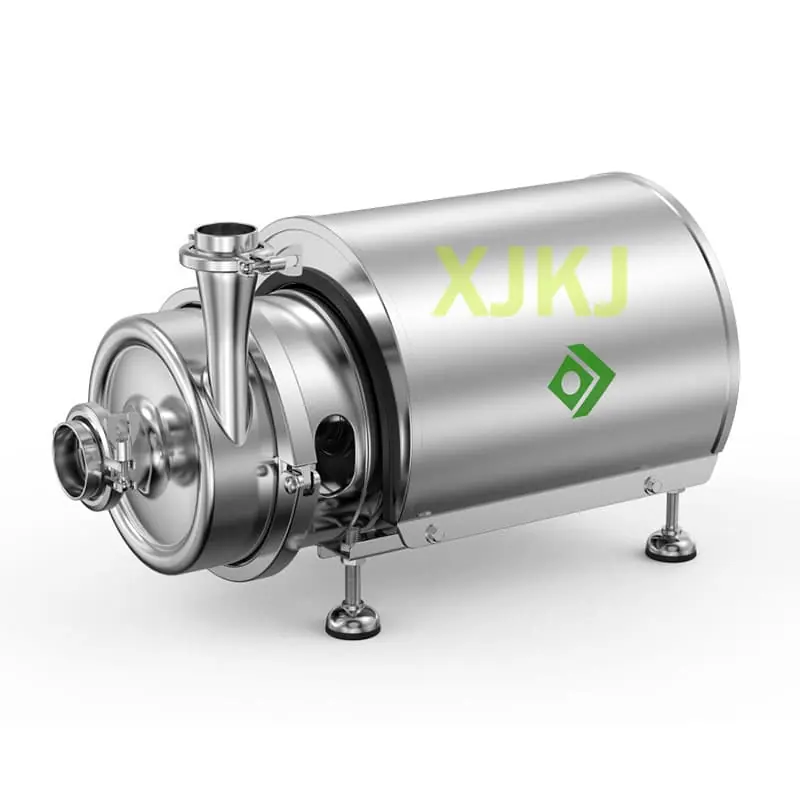

Sanitary centrifugal pump XJDFZZHS series
| Features | 1. The pump body、 pump cover、 impeller and other parts that come into contact with materials are made of SUS304 and SUS316L stainless steel2. Adopting an open impeller without leaving any sanitary dead corners, the liquid receiving part is polished, and the rest is matte or sandblasted.
3. The sealing material is food grade material, such as nitrile rubber, fluororubber, ethylene propylene rubber, PTFE, etc. |
| Operating conditions and range | 1. Flow rate: Q=3-150 m3/h;2. Head: H=10-80m;
3. Speed: n=2900r/min; 4. Maximum operation pressure: 0.6MPa; 5. Medium temperature: -10 ℃ ＜ T ＜+145 ℃ |
| Ordering instruction | 1. Requirements for required flow rate、 head、NPSH、 medium、temperature、 material、and special parameters;2. A ground with a flat foundation and sufficient strength; The pump unit should be installed at the lowest position of the equipment as much as possible (i.e. at the position with the maximum head height), and the diameter of the pipeline installation should be consistent with the inlet and outlet diameters of the pump. The inlet diameter should not be too small.
3. At the inlet and outlet of the pump, a valve and a pressure gauge should be installed to adjust the flow rate and monitor the pump's operating status. If necessary, a flow meter can be installed on the system pipeline. |
